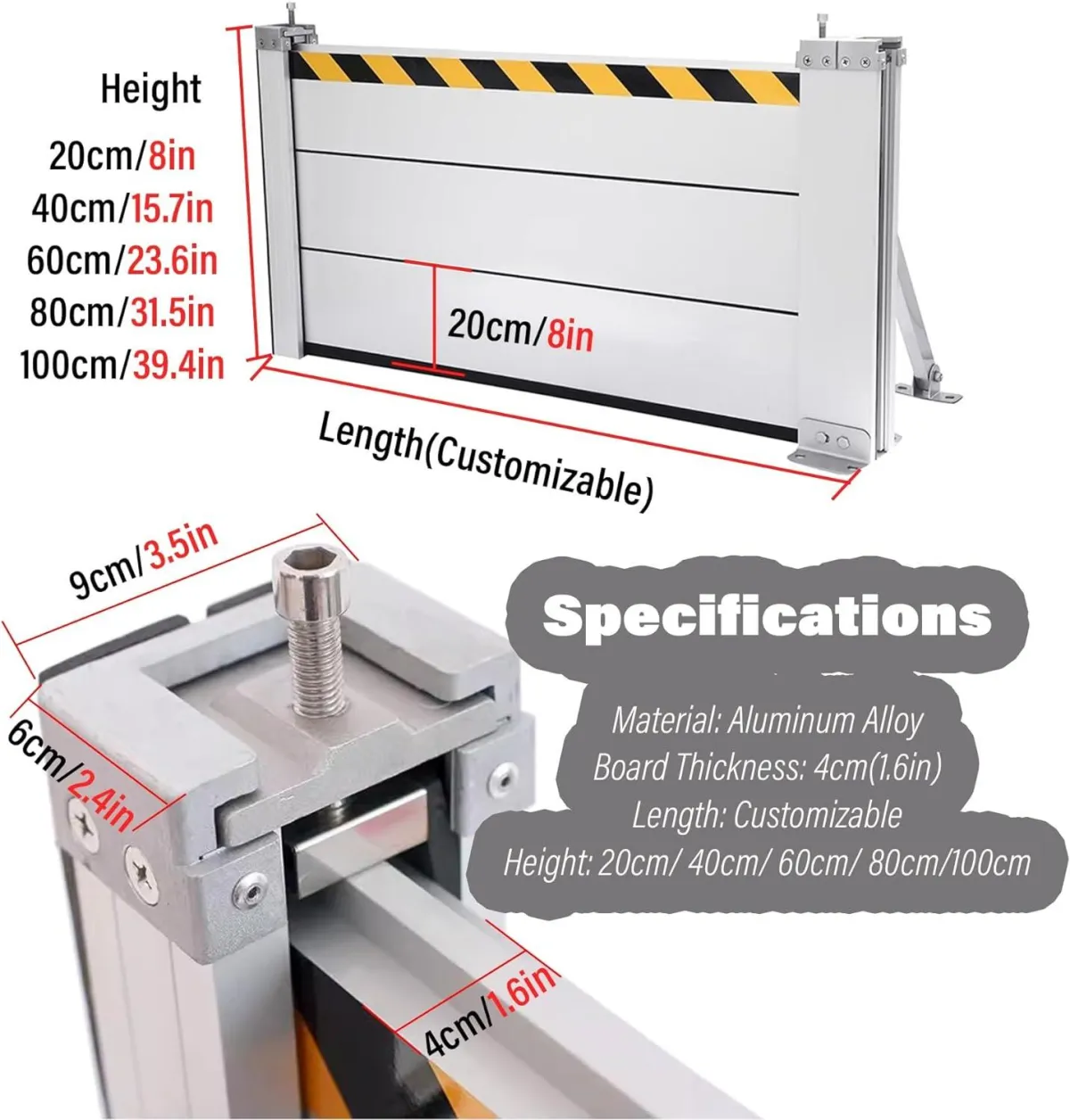

*Compare To Others* - 185 x 35mm (7.28"x1.4") 0.9 to 1.5mm wall thickness
Ours are 15% wider, 30% thicker, add 8% taller!
7 Planks = 55" High 2mm @ $255/linear ft
6 Planks = 48" High 2mm @ $220/linear ft
5 Planks = 40" High 2mm @ $185/linear ft
4 Planks = 32" High 2mm @ $165/linear ft
3 Planks = 24" High 1.5mm @ $138/linear ft
2 Planks = 16" High 1.5mm @ $110/linear ft
1 Planks = 8.6" High 1.5mm @ $98/linear ft
First Batch of 4 Homes Fabrication is complete ...
2nd Batch - Order by Sept 25th, targeting Late Oct Delivery
Realistically, I can help design solutions and prepare orders for 3-5 homes in 2nd batch.
Target delivery in 6 weeks. Prep work in October and install in November.
How Did you do it Mark?

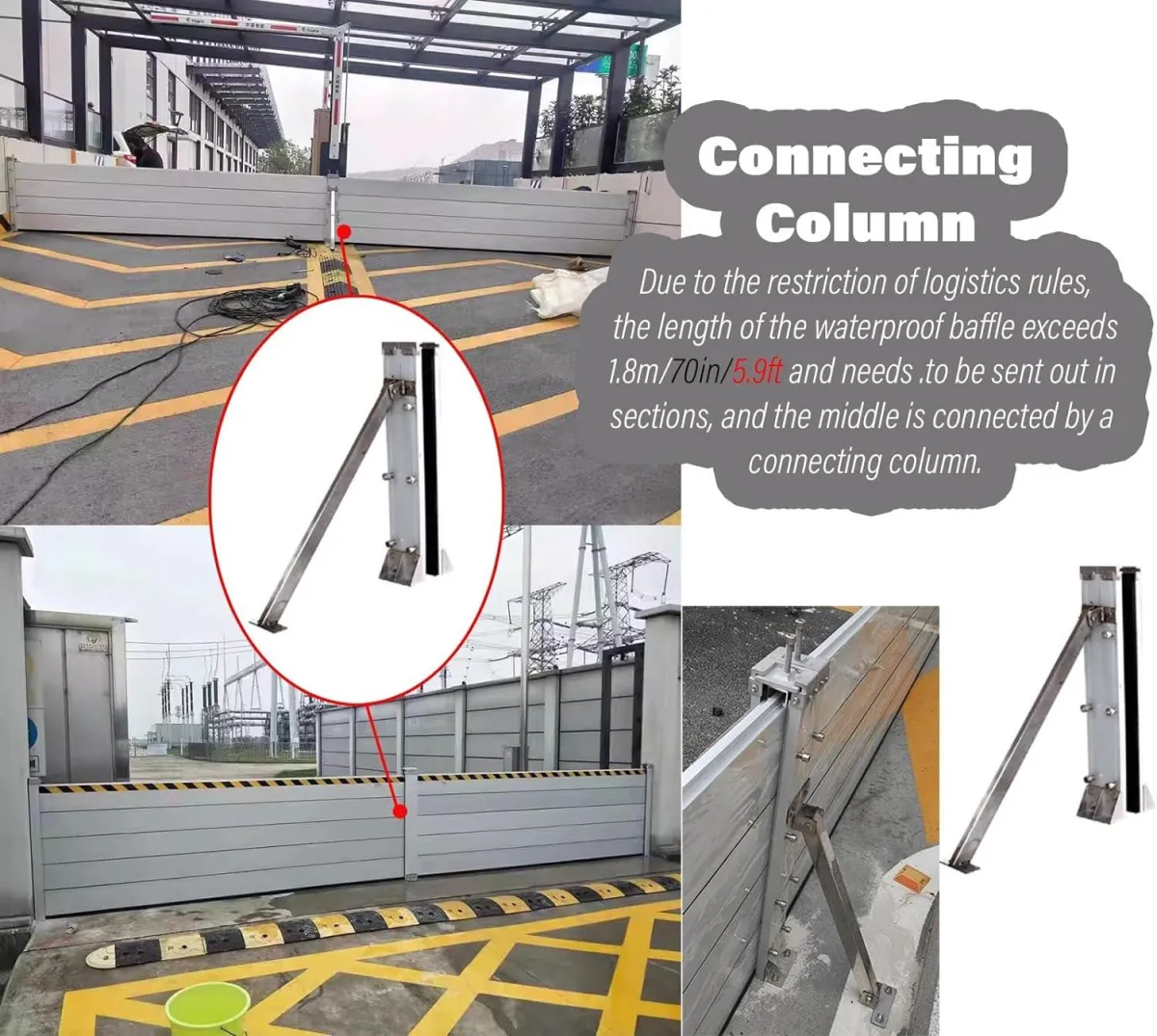

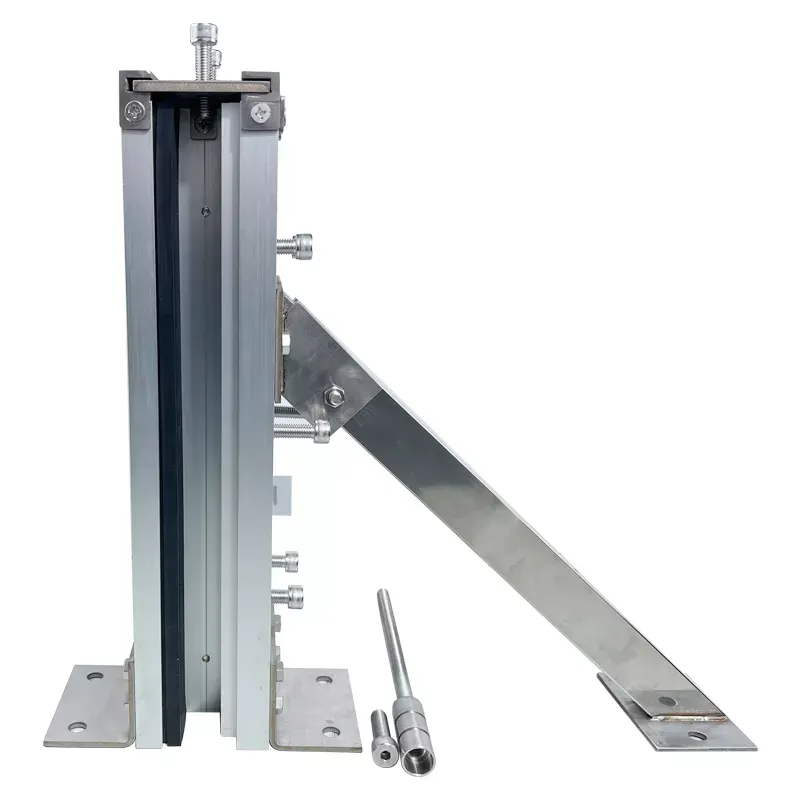

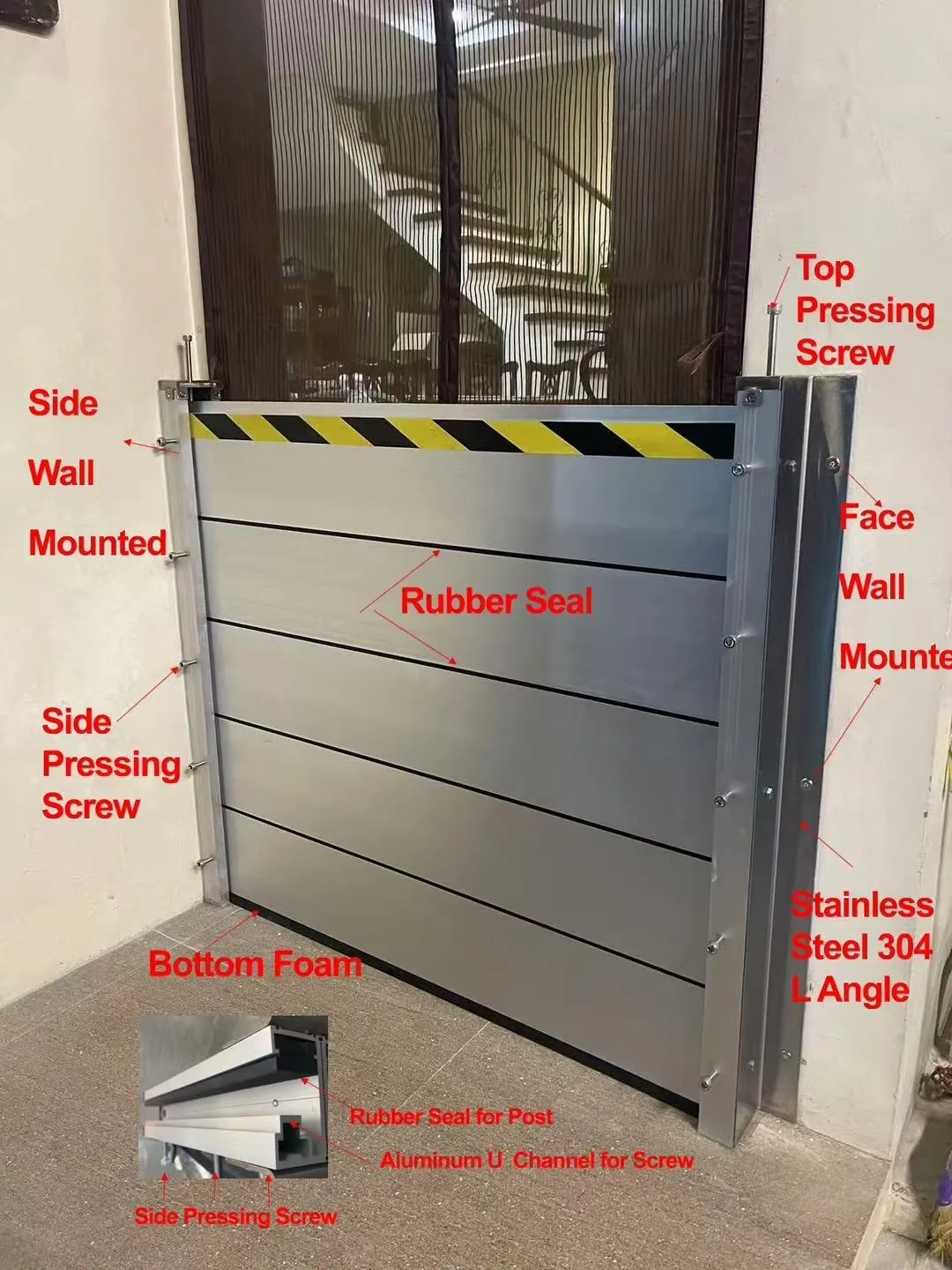

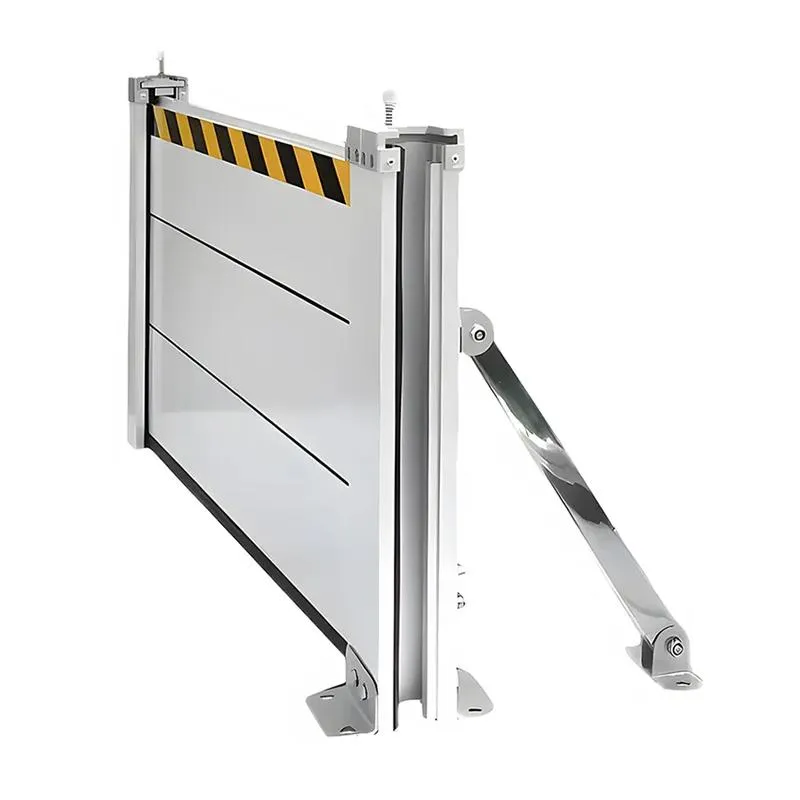

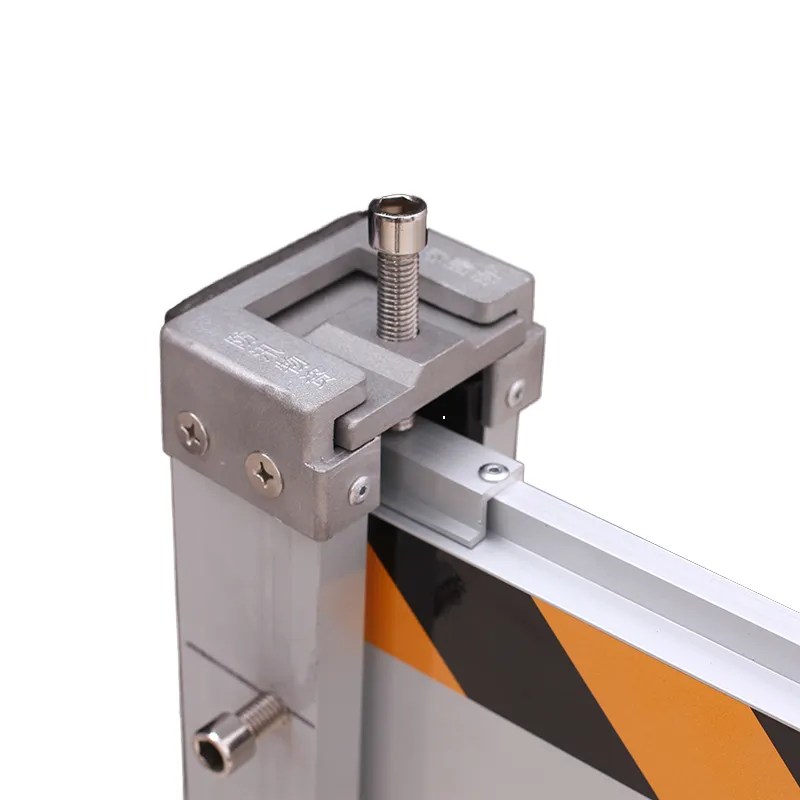

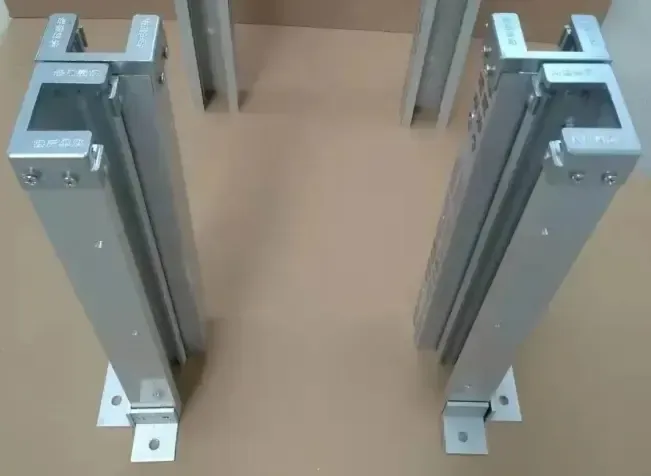

I worked out an OEM (Original Equipment Manufacturer) relationship with 3 factories to offer my complete, engineered solution under my brand Flood.Tech. Made to my specs / requirements. Vertical posts are 4.0mm. Stainless fittings. Protection up to 55.8 inches high (48" Above floor level with 4"-8" step from Garage or Lanai) with 2.0mm thick aluminum extrusions (33% thicker than 1.5mm and full 2X thicker than 1mm plank systems being offered on Amazon, etc by chinese distributors!
You have probably seen photos on Amazon, etc. with only two or three planks high. This is because the hydrostatic pressure above that on a 1.0mm thick, 35mm wide plank will simply bow them, then leak or, worst case, collapse. Hydrostatic pressure increases exponentially as the water gets deeper. That's why FEMA recommends maximum 48 inches high dry waterproofing above floor level for concrete block walls meeting building code (Reinforced solid concrete column every 4 feet). It's not a coincidence that other flood plank installers will only quote to max of 54 inches, (7) 20mm planks on our style of homes.
“I designed our process to be responsive to you! Both time and cost efficient! ” — Mark
Express Interest - Share your name, address, email, phone, # of openings, and any questions or concerns
Please snap a photo of each opening. Note the width and desired barrier height of the opening on the photo - See Measuring Instructions
Decide if it's in your budget. You can accurately approximate equipment cost. Multiply opening length by price (based opening's barrier desired height / # of plank)
7 Planks = 55" High 2mm @ $255/linear ft
6 Planks = 48" High 2mm @ $220/linear ft
5 Planks = 40" High 2mm @ $185/linear ft
4 Planks = 32" High 2mm @ $165/linear ft
3 Planks = 24" High 1.5mm @ $138/linear ft
2 Planks = 16" High 1.5mm @ $110/linear ft
1 Planks = 8.6" High 1.5mm @ $98/linear ft
Choose Between Professional Install Service - multiply total equipment cost by 2 to cover engineering support, project management, labor, & approximated tariffs and sales tax (Pending Exemption* See FAQ)
- Or choose DIY Install - multiply total equipment cost by 1.17 to approximate tariffs and sales tax (Pending Exemption* See FAQ)
Schedule an on site engineering assessment with Mark & Gabriel. Mark will provide suggestions and options. We will measure every opening again for accuracy.
We will email you a detailed quote. Please verify each opening for accuracy! Make 1st of two or three scheduled payments.
Production requires 2 weeks and a batch size of at least 3-5 homes. Delivery typically requires 4 weeks.
Installation
"Best purchase ever!"
"Peace of mind is priceless"
Mark's designs over the past twenty years have changed the world, especially for people with disabilities, terminally ill, from trauma & disease, wounded veterans, and children with special needs. Mark's solutions are recommended by the top rehabilitation centers,. used in commercial aviation, US Veterans Administration, mimicked by Microsoft for adaptive gaming, and selected by the Secret Service for use in the White House and US Congress for emergency evacuation. In the photo Mark is demonstrating an adaptive electric fishing reel and wheelchair rod holder sitting in his power wheelchair on his dock in Yacht Club Colony, N Fort Myers Forida.
Trust your neighbor, Mark Felling, to help protect your YCC home against hurricane flooding. I will treat your home as my own.
I applied 25 years of engineering expertise to
design the best possible solution for my own YCC home - backed by FEMA Recommendations, hydraulic, marine, and structural engineering.
Results are highly dependent on the details - project planning before fabrication, then exceptional installation with 90% of the work in surface, base, and anchor preparation.
Mark sustained his spinal cord injury due to a loss of sufficient engine power after takeoff in a small single-engine aircraft. Forcing him to put the aircraft down in the trees in the Minnesota River Valley. The only alternative was the river, which according to pilot training, has a 95% statistical likelihood of death in a fixed-gear airplane. Mark knows all too well the importance of attention to detail, designing redundancy into mission-critical systems, and not depending on insurance or guarantees.
Exceeding all other flood barrier providers, Mark designs high-efficiency DC brushless pumps rated at up to 1100 GPH powered by Lifepo4 batteries into all of our flood barrier solutions to remove any seepage and providing an very important extra layer of protection against minor damage to the flood barrier or minor failures. Mark tested these pumps to empty his 20,000 gallon pool, typical of most YCC homes, after Hurricanes Hailen and Milton on a single battery charge! 4 Pumps, one for each ground-level opening should protect against an entire pool's equivalent of water over an estimated 6 to 8 hour risk with significant redundancy.

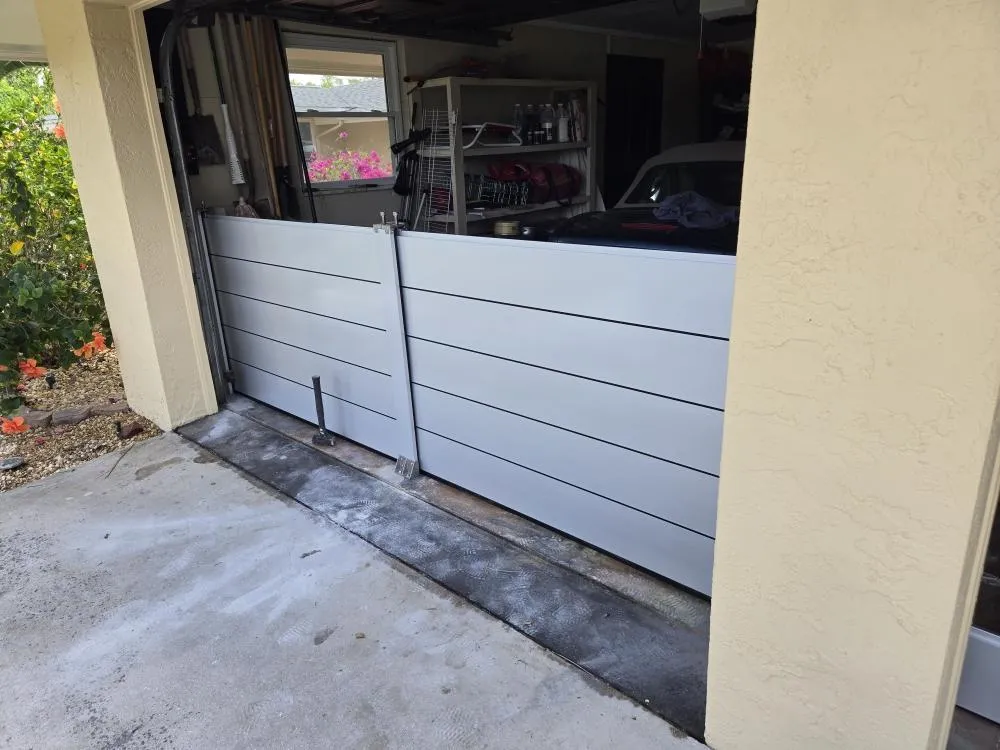

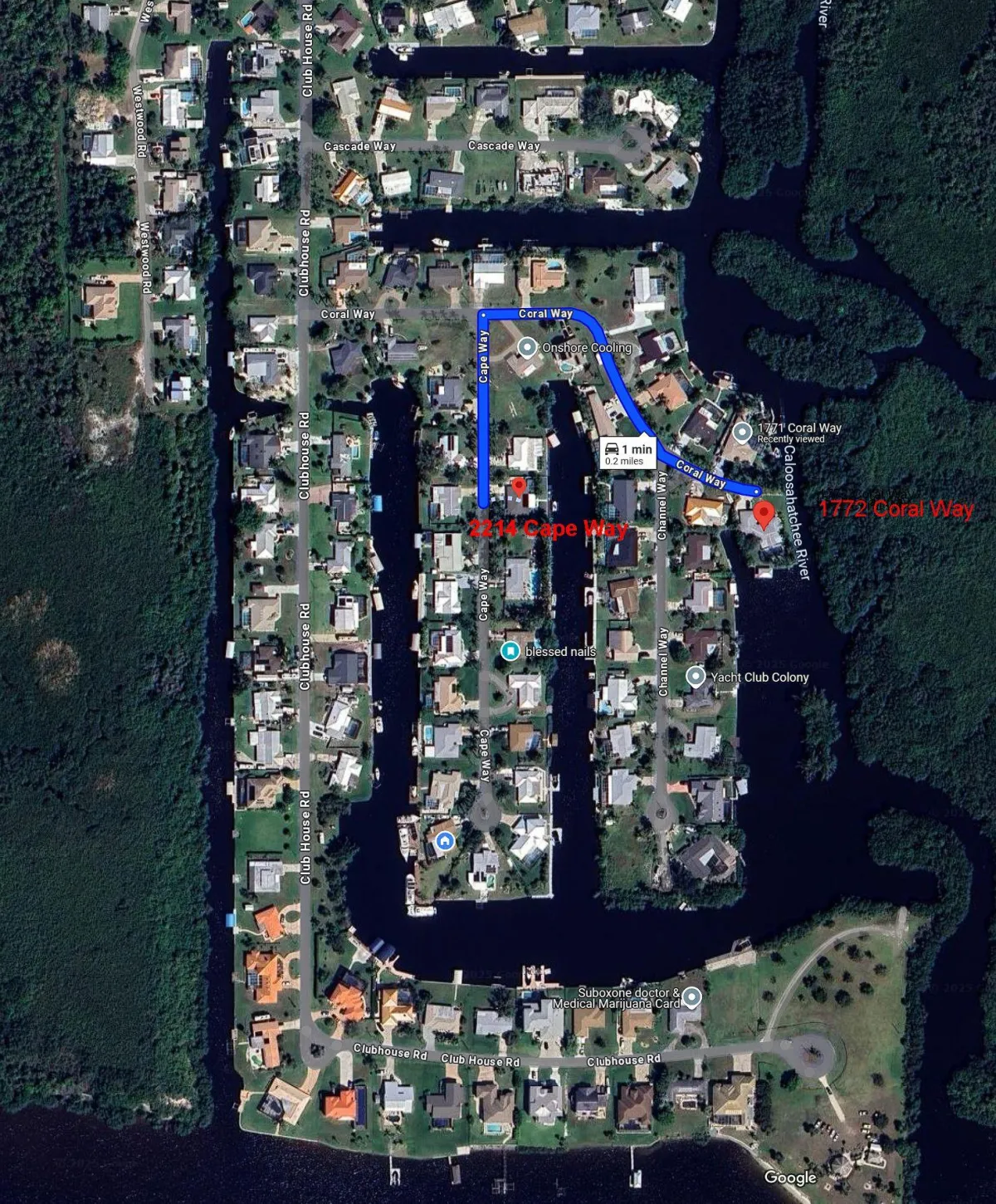

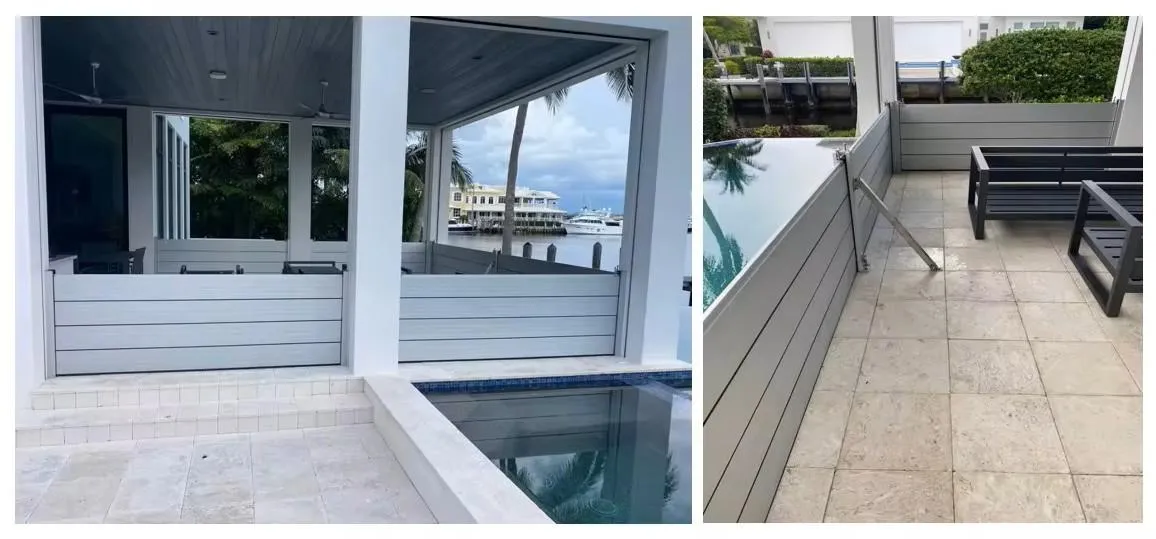

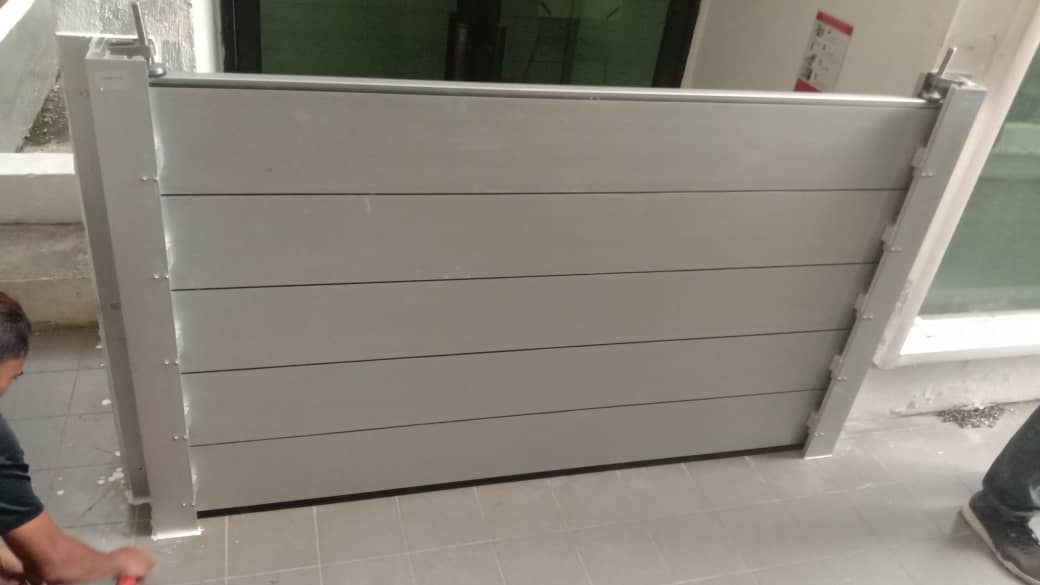

See Two Installed Examples:
- 2214 Cape Way - Installed by Garrison Flood Control
- 1772 Coral Way - DIY homeowner install - branded DEFE - 1.5mm from same factory

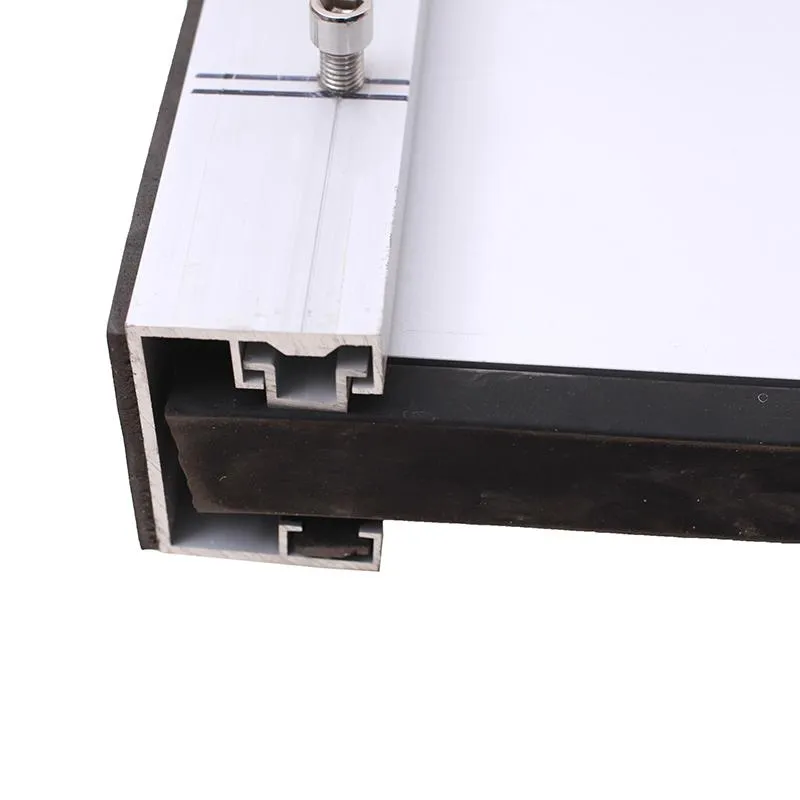

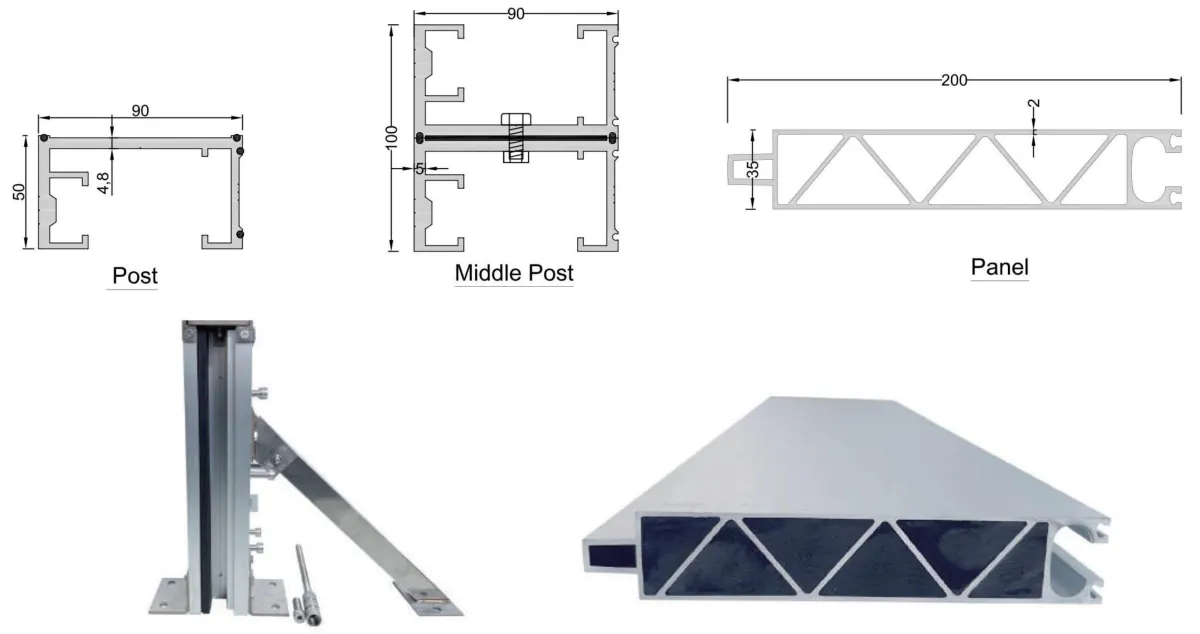

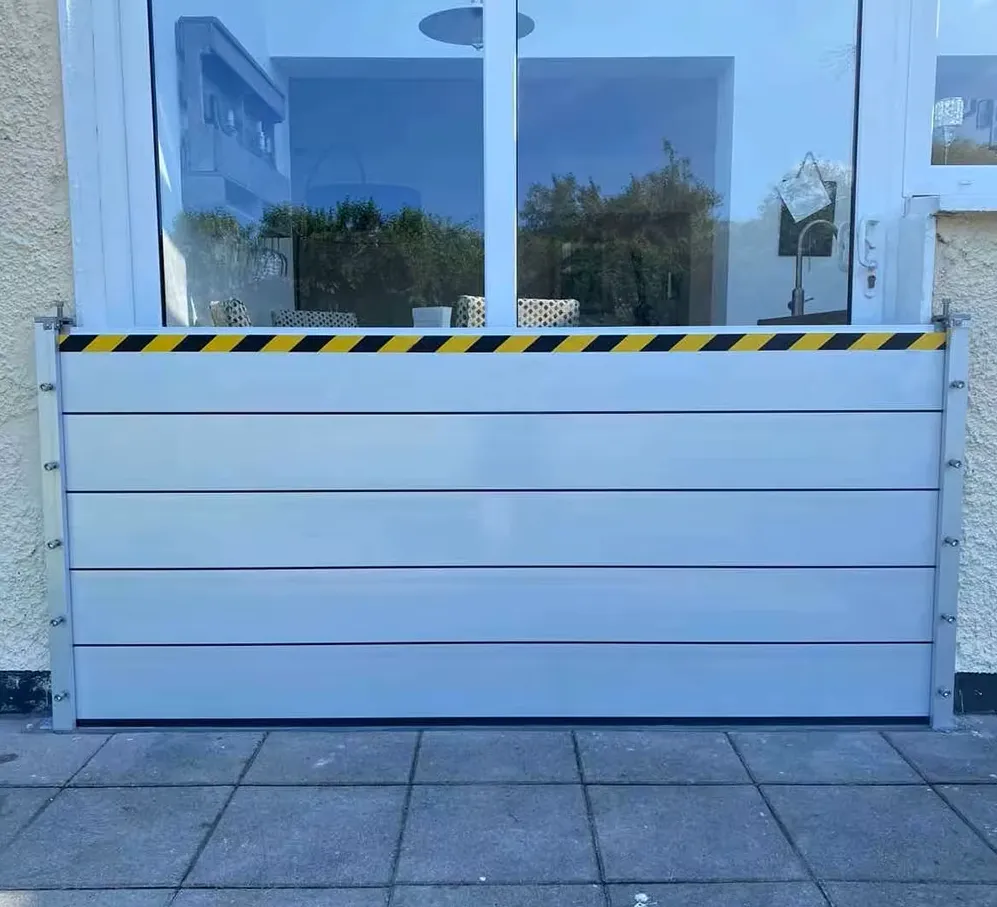

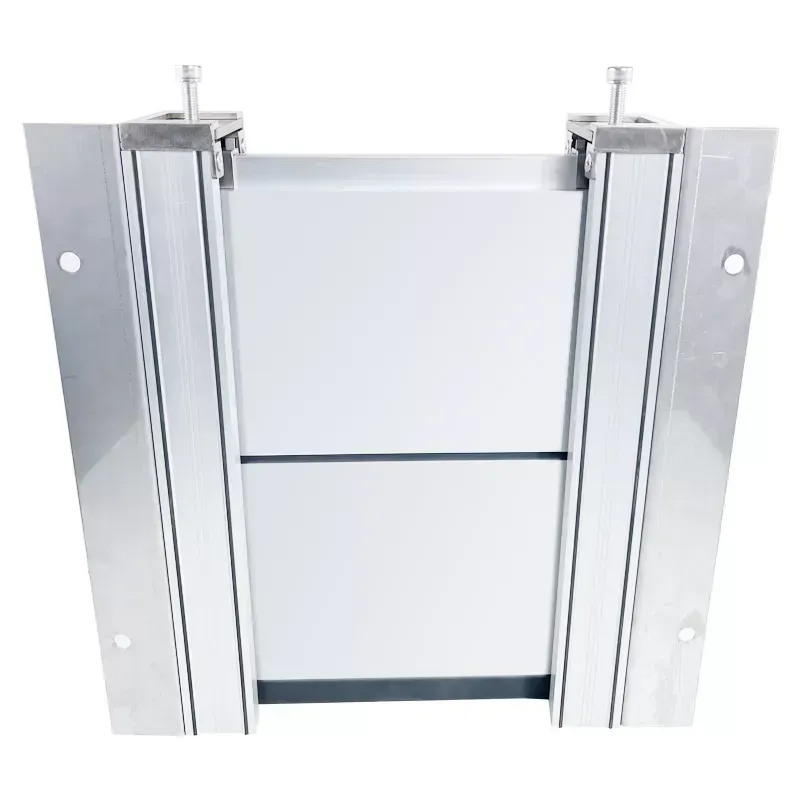

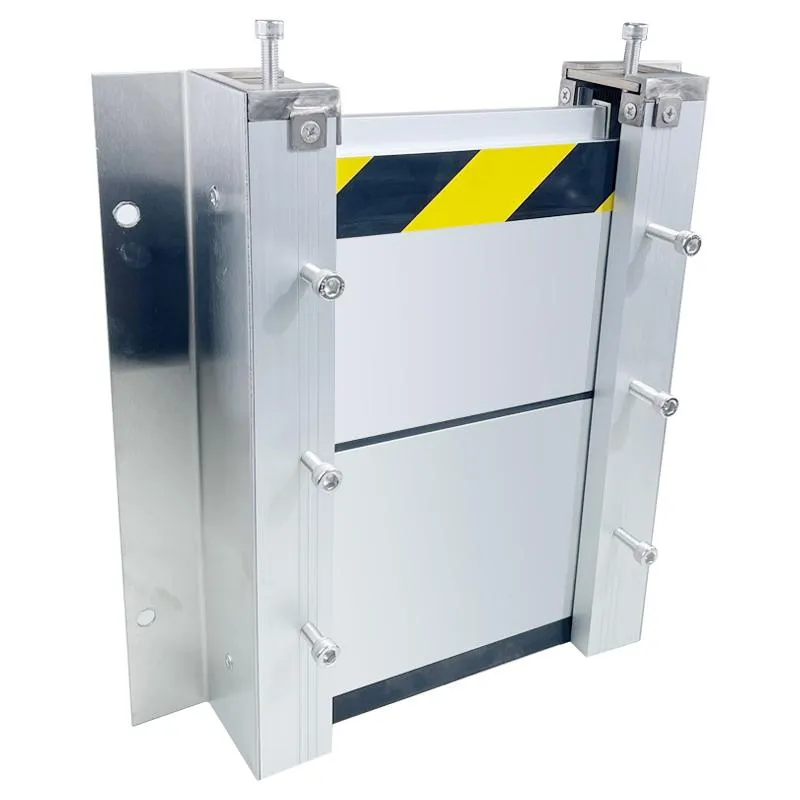

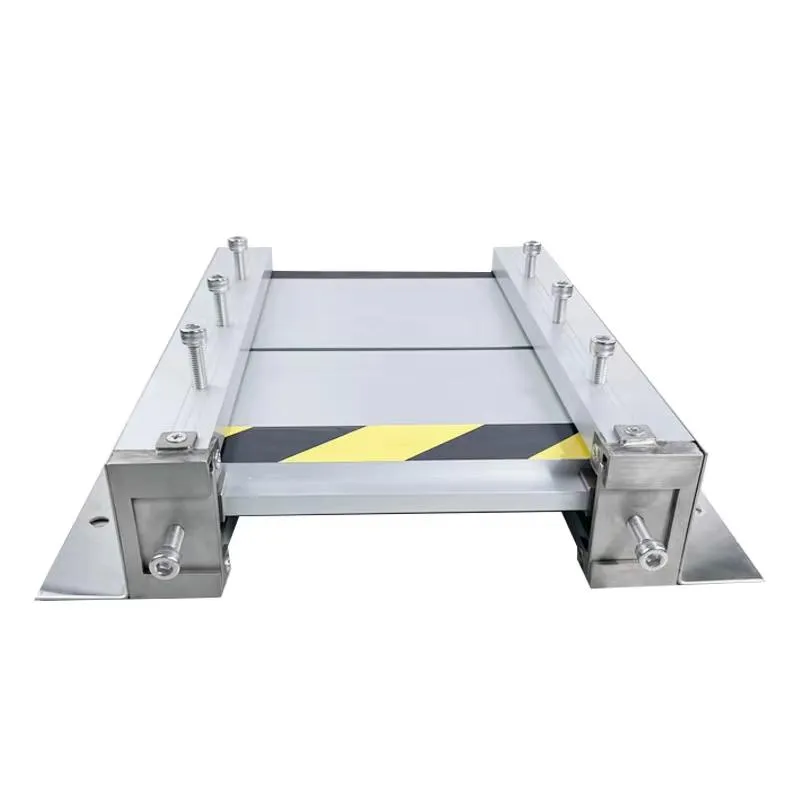

30% Thicker Extrusions
up to 55.8" high
Typically placed inside doorways

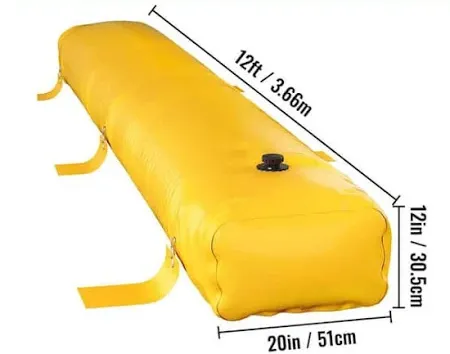

12 inches high. 4 ft, 12ft, and 20 ft lengths, flexible and foldable
Fill with water from a garden hose before evacuating
Not waterproof in corners, but will significantly slow down any leak, allowing Stage 3 pumps to deal with it.
With 4 to 5 pumps = 3000 gal/hr or 20,000 gallon leak over 6-8 hrs before major damage.

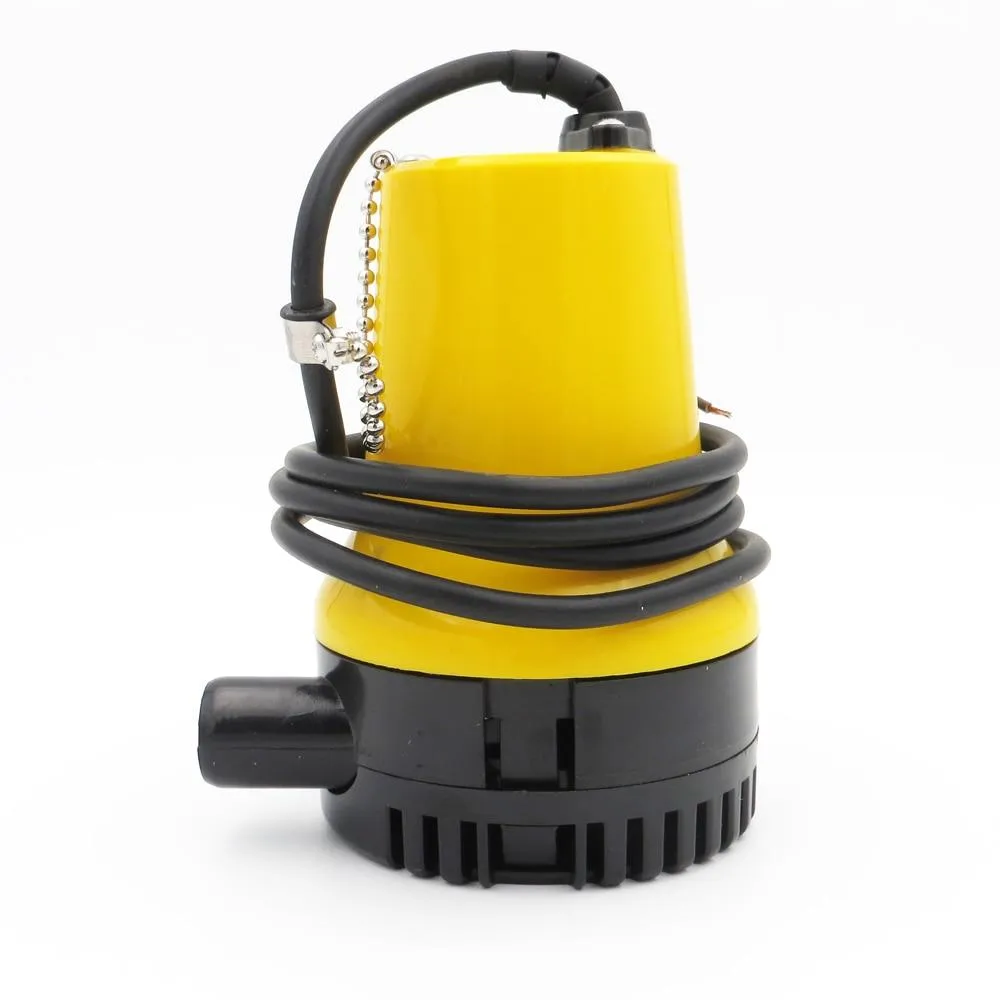

Brushless pump motors last 10x longer than brushed pump motors. They are quite compact and more electrically efficient, requiring fewer amps than a typical brushed bilge pump that moves the same volume of water. 12 volt, 10.8 amp 50 watt or 24 volt, 5.4 amp 50 watt or 48v in the works 1 inch, 25mm discharge outlet Flow Rate: 1110 gal/hr (70 l/min or 4.5m3/h) Lift / Head 3m-5m RPM: 5400r/min Temperature: 0-60 ℃ Impeller: Single stage Material: ABS Easy cleaning of the strainer and impeller if becomes clogged with debris.
Includes
Submersible Bilge Water Pump with elbow and 5' cable + highly reliable float switch mounted directly to pump body for simplicity +6ft 1" ID reinforced tubing to eject outside of aluminum plank flood barrier. Requires OPTIONAL 12V / 24V / 48V Lifepo4 Battery - 2500 watt hours recommended for pumps - worst case
Stay in your home without sacrificing air conditioning

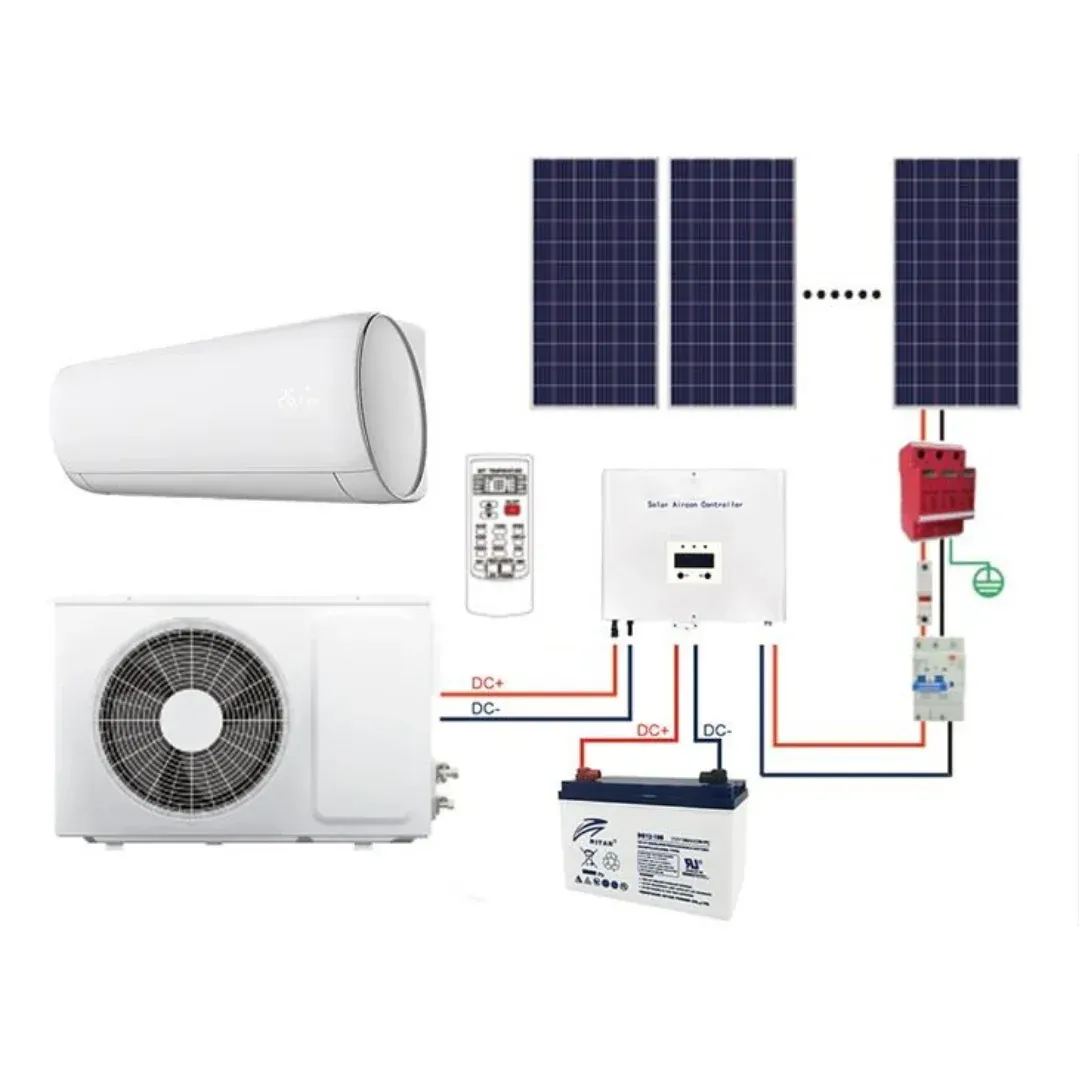

48v DC-Direct Mini-split Air Conditioner Ultra-efficient air-to-air heat exchangers 12,000 BTU to sleep in comfort for your master bedroom or 24,000 BTU for Salon & Kitchen.
I designed and manufactured to Mark's specifications out of a stainless steel enclosure to mount high on the wall above floodwaters in Southwest Florida
48v 3000W, 6000W, 8KW, or 12Kw whole home backup inverters available
48v DC Battery Charging 2.5kW to 5kw Generator with Auto Start / Auto Stop available. Uniquely, simply, directly connects to battery!
Even 48 Volt DC-Direct solar / AC near instant hot water Hybrid water heaters. Hydronic pool or hot tub heat exchangers.
Solar ready! Add solar when you're ready, and pays for itself in 5 to 10 years! No 20 or 25 year grid tie lease agreement required 4Independence. Or talk to Mark about custom designed mini-grid sharing solar and generator with your boat parked behind your canal-side Florida home.
FAQs
Mark's Answers to Your Flood Barrier questions and concerns!
Aluminum plank barriers are highly effective, offering robust resistance against water penetration and minimizing the risk of water damage. However no flood barrier or flood protection company will guarantee results against the forces and unpredictability of Mother Nature or impacts from floating debris. If they do call me you should really question their trustworthiness. However good design and exceptional installation with attention to detail can go a very long way.
We can also offer our Heavy-Duty 2-inch (50mm) wide 2.5mm thick and UIltimate 4-inch (100mm) wide 3.0mm thick aluminum plank flood barrier systems providing protection up to 15 feet high, though at a significant increase in cost. These are typically offered or utilized for commercial and government infrastructure projects, and of course are much stronger.
ALL flood barriers will have some seepage. We go the extra mile by embedding stainless steel base plates under each middle support post AND stainless steel channel under the FULL length of the rubber seals of our floodplanks. This greatly reduces seepage compared to having the seals sitting on top of even smooth concrete. The smoother the surface, the better the seal!
Mark sustained his spinal cord injury due to engine failure after takeoff in a small single-engine aircraft forcing him to land it in the trees in the Minnesota River Valley. He knows all too well the importance of designing redundancy into mission-critical systems.
Exceeding all other flood barrier providers, Mark designs high-efficiency DC brushless pumps rated at up to 1100 GPH powered by Lifepo4 batteries into all of our flood barrier solutions to remove any seepage and providing an very important extra layer of protection against minor damage to the flood barrier or minor failures. Mark tested these pumps to empty his 20,000 gallon pool, typical of most YCC homes, after Hurricanes Hailen and Milton on a single battery charge! 4 Pumps, one for each ground-level opening should protect against an entire pool's equivalent of water over an estimated 6 to 8 hour risk with significant redundancy.
Yes, our aluminum plank flood barriers can be customized to fit the specific dimensions and architectural style of any home. You can paint the vertical posts to match your home's exterior or they can even be made removable. We aim to provide effective flood protection that also complements your home's aesthetic.

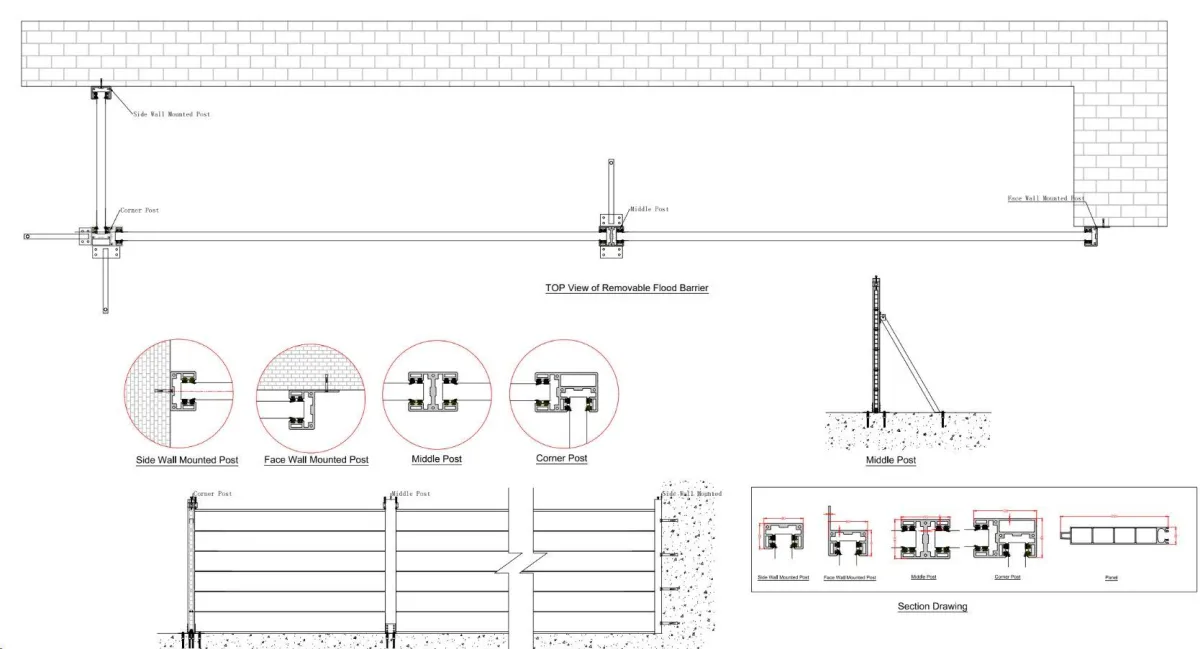

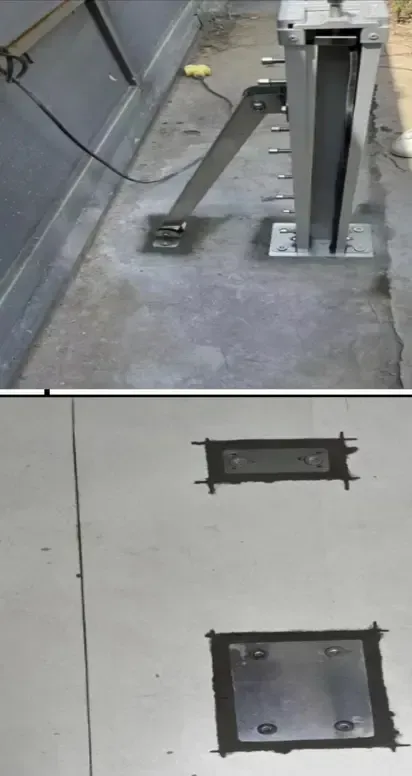

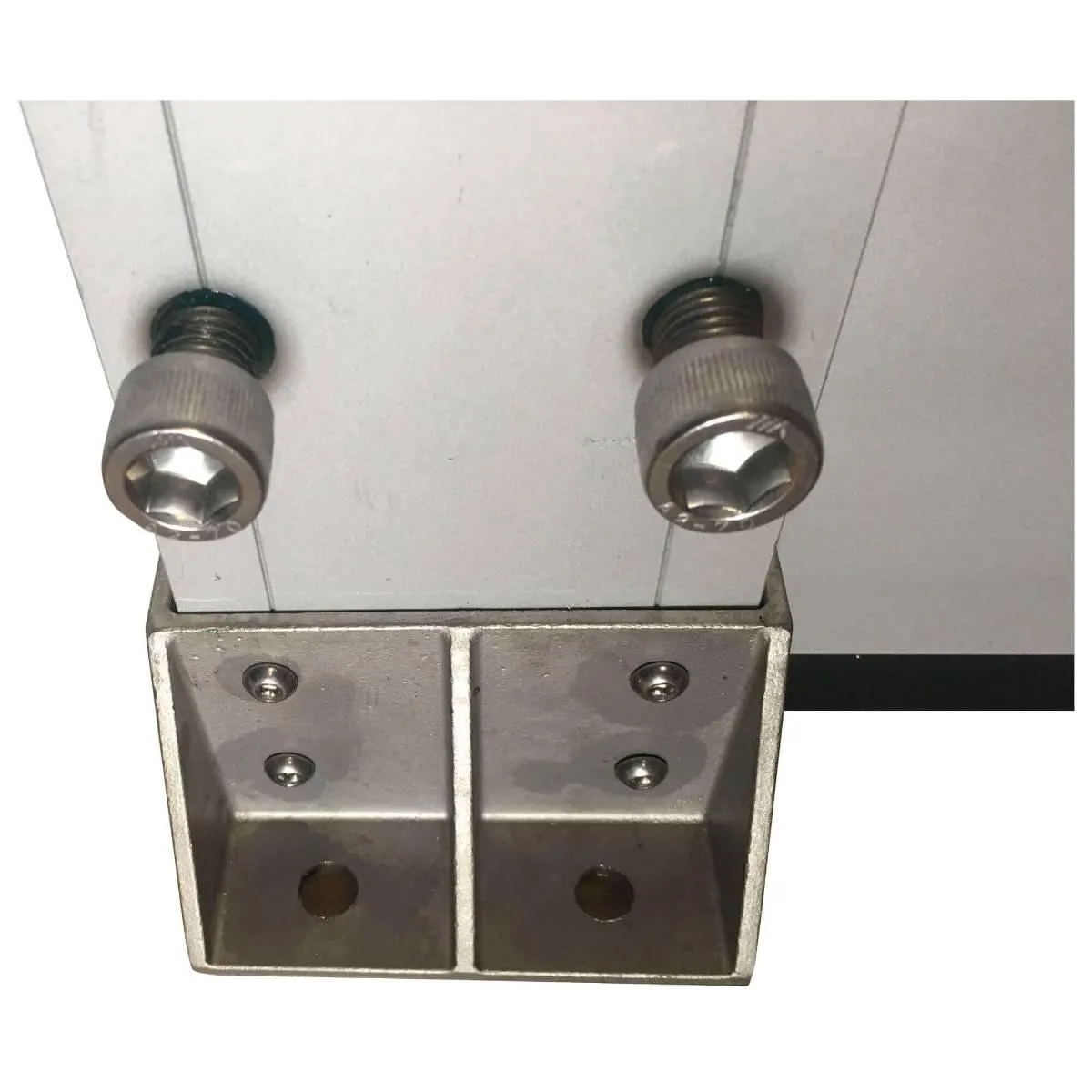

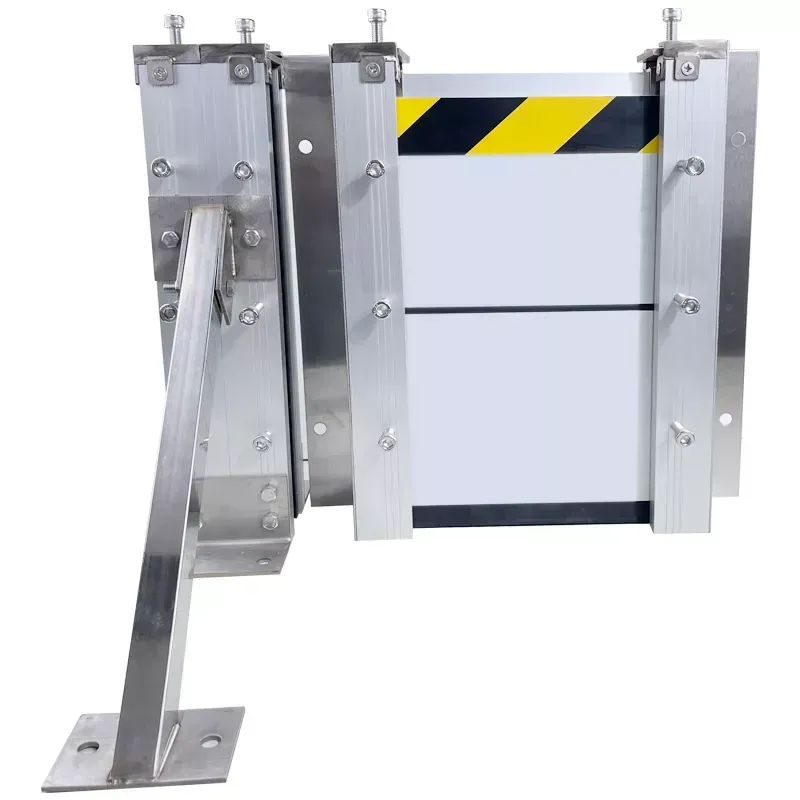

We use the latest modern diamond tools and techniques to embed stainless steel base plates and channel in fresh, reinforced concrete under each flood protection barrier, middle support post and 45° angle support, allowing us to blend them directly into esthetics of pool or driveway pavers rather than having to tear up rows of pavers and replace them with poured concrete.
These stainless steel channels, sometimes specified or required by commercial or government-funded flood barriers also greatly reduce seepage that will occur with ALL flood barrier systems. This involves significant extra cost in time and labor and to the best of my knowledge, ONLY Flood.Tech does this. Mark encourages you to ask competitors for quotes but be sure to require stainless channel embedded in the concrete under all flood barrier rubber seals. Our exceptional quality, exceeding all others will be obvious, but I am 100% confident you will also be shocked by their price compared to ours!
Expected life is 20 years with proper maintenance, thanks to durable, corrosion-resistant aluminum. EPDM rubber seals should be inspected annually and replaced every 5 years. Brushless DC pumps are highly reliable lasting more than 30,000 hours. However all electric motors are made of ferrous metal and if stored in high humidity will corrode. So Mark simply recommends storing them in vacuum-sealed food storage bags, and test run them before each hurricane season, then reseal. Lifepo4 batteries have an expected life of 10+ years with 4000-6000 cycles. They are best stored at 40% to 60% charge. It's best to operate them through a charge / discharge cycle at least once every 3-6 months for maximum life..
How quickly can flood barriers be deployed in an emergency?
Our system is designed for quick deployment, often taking just a few hours for a typical residential property.
Are there financing options available for your flood protection systems?
Yes, we can offer financing to make our systems more accessible, though you will always obtain the best rates from your local financial institution.
Do you provide training on how to set up and dismantle the barriers
Yes, each purchase includes a training session on effectively deploying, dismantling, storing, and maintaining your flood protection barriers.
